Indentifying Parts of a Compass with Illustrated Diagram

Whenever history teachers need to rank the most important inventions of humankind, compasses tend to be up there in the top 5, alongside the printing press, fire, and the internet. That’s because the ability to stay on track through long distances of nothing has saved countless lives and enabled massive logistical enterprises.

Even nowadays, despite all our progress with GPS technologies, many trekkers and survivalists continue to carry an extra compass for good measure.

Plus, many of us have inherited an expensive old compass as a family heirloom, as some come in very ornate handcrafted boxes or sturdy military casings. In homes, maps can be great decorating stuff and are also used to check the property sides for feng shui purposes as well.

No matter what type of compass has landed on your lap, chances are that it still works under the same principles as those that first crossed the seas in the 15th century. By examining each one of their parts, you’ll get to learn how it works!

The Parts of a Compass

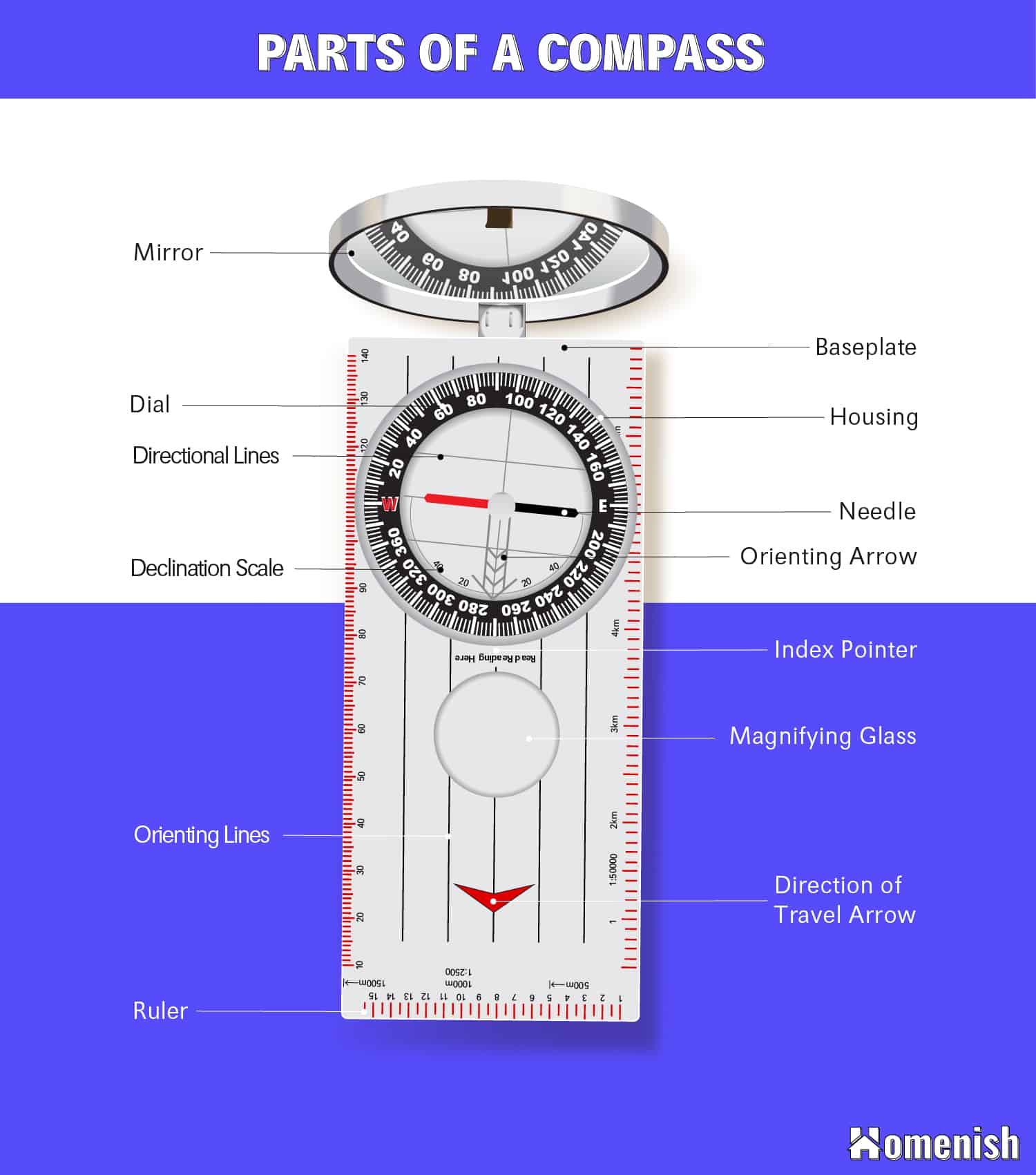

Parts of a Compass Diagram

When you look at a compass at a glance, you can usually identify the baseplate, the housing, and the dial very quickly. But what do all the other small lines and rotating parts mean?

Many of the smaller parts listed here are not included in all compasses. The fancier your model, the higher the chance that you will get extra bells and whistles.

Baseplate

The baseplate is the largest section of a compass. In modern models, it is usually the big piece of plastic or metal on which everything else is mounted on. Depending on your model, your baseplate may feature:

Scales and Rules

These are a series of regular lines meant to help you interpret the scale of a map. Just place them on top of the map, and compare them to the appropriate scale to measure the approximate distance between two points on the map.

Fortunately, most hiking maps tend to follow the same standard scales – otherwise, this would be too hard to read!

Magnifying Glass

If you get disoriented during a trip, you may need to take a good look at the details on your map. Because of this, many of the more expensive models now include a small magnifying glass on one side of the baseplate.

Direction-of-Travel Arrow

In compasses with a rotating dial, you will most likely also have a direction-of-travel arrow. This is a larger, visible arrow that usually points directly to the top of the base plate. This arrow is supposed to point to the direction in which you are heading and help you compare it against the Compass North.

Declination Scale

This is an additional set of marks that usually only appears on very high-end models. They are meant to help you calculate the difference between the True North and the Magnetic North. They are usually marked on one side of the baseplate, next to the ruler. However, they are only truly useful when you are traveling very close to a Pole.

Mirror

Some high-end compass models also include a small mirror next to the magnifying glass. It can be used to track distant objects without losing sight of your needle and dial. Sometimes, it can also be used in high mountains or snowy landscapes to issue an emergency signal.

Housing

The housing section of the compass is the small glass or resin case that holds all its moving parts. It is usually directly on top of the baseplate. This small case may include all the following elements:

Needle

The needle is perhaps the only truly essential part of your compass. This is the magnetized piece of metal that is meant to point north no matter what. It is usually placed in the middle of the housing case, held together by a fine point that allows it to move.

Some models fill the housing with clear fluid and include a small bubble underneath the needle. This is to ensure it moves freely!

Orienting Arrow

Some compasses have a small arrow painted directly on the bottom end of the housing beneath the needle. This is supposed to help you orient the compass, so it is called an orienting arrow. This arrow is usually placed on an intermediate plate that will move with the dial. When trying to follow a bearing, you will need to align the orienting arrow with the needle.

Dial

The dial is a ring that surrounds the housing. The idea is that you should be able to either turn the compass until the top of the dial marks North, matching the needle. Some models have a sliding or movable ring, which works a lot like a watch’s chronometer would. In these cases, you can just slide the dial into the correct position without moving the compass.

Either way, the dial will have markings for all cardinal points. Sometimes, it will also have extra degree markings, which will help you get a bearing.

Orienting Lines

These are parallel lines painted on the housing and along the base plate. They are meant to help you establish a bearing.

Degree Indicator

The degree indicator is a small and discreet line on one side of the housing, right where it meets the plate. Sometimes, this will be a tiny arrow, but in smaller compasses, it can be just a small red triangle. This mark is meant to be fixed: when you are trying to set a bearing line, you will need to use this mark as a starting point and calculate the distance between it and the needle.

Aiming Line

Larger compasses sometimes include a longer aiming line, painted on the bottom. This line crosses the housing and the baseplate, as it is meant to act as a continuation of the degree indicator. It can be very useful when trying to point at distant objects.

Index Pointer

This smaller arrow is essentially the back side of the larger direction-of-travel arrow. Because of this, it will sometimes appear on one edge of the housing rather than the baseplate. In some models, it falls on the opposite end of the magnifier.

Conclusion

The compass, celebrated as one of humanity’s pivotal inventions, remains indispensable for navigation despite advancements in GPS technology. Its design, detailed from the baseplate to the dial, embodies principles that have guided explorers since the 15th century.

Beyond its practical use, the compass also serves as a decorative element in homes, where its aesthetic appeal and historical significance enhance interior designs.
