10 Types of Beams Explained with Pros and Cons

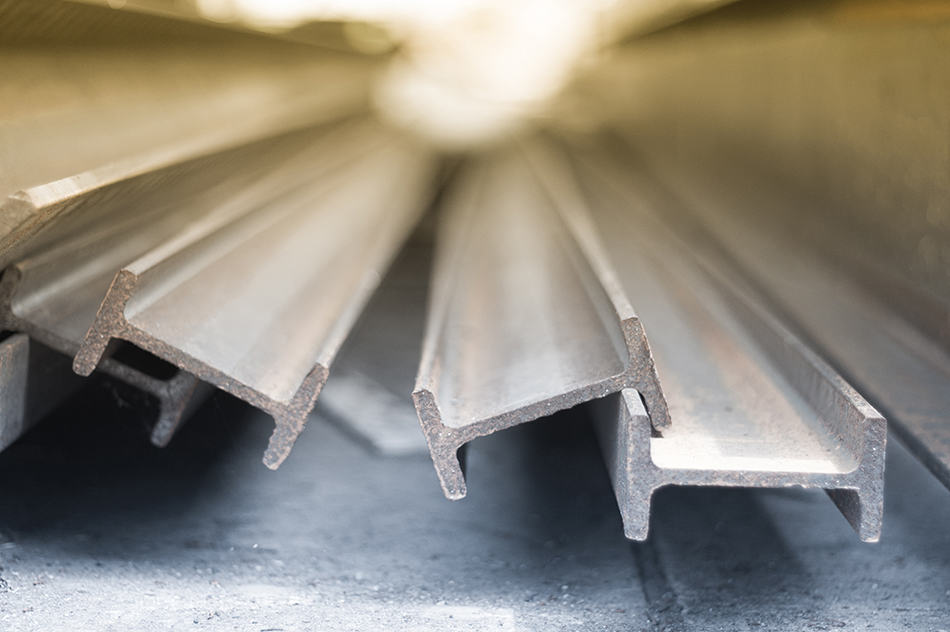

Types of Beams

Beams are a very important part of most construction jobs. They are those structural elements whose main purpose is to withstand any lateral force that’s applied to their axis. Beams deflect force mainly by bending. When the load is applied to a beam, reaction forces occur at the support points on the beam. All forces acting on a beam combine to produce bending moments and shear forces that subsequently cause the beam to endure deflections, strains, and internal stress.

Beams are most popularly used in civil engineering when describing structural elements in buildings; however other structural systems and mechanical systems also possess beams that are made to bear lateral loads. Such systems include machine frames, components of aircraft, automotive and automobile frames.

There are several kinds of beams as they can be classified by the kind of support that they provide, the shape of their cross-section (profile), the type of material they’re made of, their length, and equilibrium conditions.

Simply Supported Beam

Simply Supported Beam

Just as their name implies, simply supported beams are very simple structural elements that have their two ends resting on a support; however, they can rotate freely. They are very simple to analyze. One end contains roller support, and the other end contains a pinned support. It upholds all bending and shearing, depending on the amount of load that it is designed to support.

There are several benefits to using a simply supported beam. For one, they are simple and quick to install. Simply supported beams don’t require any complex connections to other supports. These kinds of beams also transfer fewer loads to the central support than a continuous beam does; instead, they transfer most of their load to the end supports, and this is beneficial for certain kinds of situations.

Fixed Beam

Fixed beams are also called built-in beams; they have support at both their ends to resist rotation. Since their ends are fixed, they provide rotational, horizontal, and vertical resistance as maintained by their moment of inertia from each end.

The major advantage of fixed beams is that they oppose displacement in every direction. They are also very useful in moments of inertia. Fixed beams are useful for when you’re finding the support moments for an indeterminate beam, such as the continuous beam. With fixed beams, there is a lower amount of deflection due to fewer sagging moments. Some disadvantages of fixed beams include difficulty in maintaining the field’s two ends and an increased amount of stress caused by variations in temperature.

Cantilever Beam

When a beam is free on one end and allowed to be free at the opposite end, it is called a cantilever beam. A cantilever beam works by distributing the load on the beam back to the beam’s support, at the support, it is forced against shear stress and a moment. Cantilever beams are very useful in building cantilever bridges, bay windows, and balconies. Some advantages of cantilever beams include the fact that they are very easy to build. One only has to fix the support on one end, as support on the opposite end is not necessary with this type of beam.

These beams span longer than the simply supported beams because, with cantilever beams, you can add an extra beam to the cantilever arms. It is relatively easy to sustain ground movements and thermal expansions because a cantilever beam simply rests on the arms. They can also be very rigid, thanks to their depth. These beams produce negative bending moments, which can help in opposing positive bending moments that are produced in some other parts of the structure. Some disadvantages of cantilever beams include the fact that they typically yield larger moments. Their large deflections also limit the possible sizes of cantilever beams.

Continuous Beam

Along the length of a continuous beam, you’ll find more than two supports spread out through the entire beam. This type of beam is essentially an indeterminate structure; the degree of its indeterminacy is dependent on the number of spans on the beam. Consequently, it possesses all the benefits that an indeterminate structure has over a determinate structure.

Some advantages of a continuous beam include the fact that compared to a simply-supported beam, it experiences less maximum positive bending moments. This kind of beam also possesses less maximum deflection compared to a simply supported beam. With this kind of beam, you can have a much longer distance or span between supports. This is unlike the simply supported beam. Since deflection and maximum bending stress are reduced, it permits members to be of less bending stiffness and less overall depth. Continuous beams made with ductile material, e.g., steel, allows for the redistribution of moments, thereby making use of available reserve strength.

In spite of all their benefits, indeterminate structures in general (this includes continuous beams) are sometimes overlooked in favor of determinate structures, e.g., simply supported beams due to a few disadvantages such as the fact that changes in temperature and settlements of the supports, among other factors in a continuous beam, can introduce stress to the beam.

Despite its disadvantages, the advantages of continuous beams are numerous and clearly outweigh the demerits. Therefore continuous beams are typically preferred in most constructions, and you’ll often see them in applications.

Reinforced Concrete Beams

Reinforced Concrete Beams

Just as their name implies, reinforced concrete beams are designed from reinforcement and concrete. Sometimes, you’ll find these beams hidden in reinforced concrete slabs. This is the reason they’re also called concealed or hidden beams. Some benefits of using reinforced concrete beams are that they’re strong, low-maintenance, resilient, and durable. They provide additional strength to a structure, have a long service life, and are known to be fire-resistant. One disadvantage of reinforced concrete beams is the fact that when shrinkage occurs in reinforced concrete, cracks begin to develop, and the structure loses strength.

Steel Beams

Steel Beams

Steel beams are made from steel and can be found in many types of applications. They are popular for their versatility and can be used in the construction of big structures such as mansions or skyscrapers.  Because they’re made of steel, they can be trusted to support a heavy load. They come in various sizes and shapes so that one can easily pick according to the requirements of the structure being built. They’re popularly used in house frames and on roofs to protect a building from harsh atmospheric conditions.

As with other kinds of beams, steel beams have certain advantages and disadvantages. Some of their advantages include the fact that they are recyclable, which means they cause minimal construction waste. They are also very durable, having a very high strength-to-weight ratio. This means they can bear stress; this quality makes them popular in the construction of bridges and skyscrapers. Their chemical composition makes them resistant to rust and corrosion. Thanks to this, their life expectancy is higher than that of other construction materials.

Some cons of steel beams are their high maintenance cost. For instance, one has to coat them with paint regularly to prevent corrosion. They are also not as fire-resistant as some other beams. If a steel beam is affected by fire, the fire reduces the beam’s strength, which means that the strength of the entire structure would be at risk. Lastly, since steel beams are very heavy, they are a lot harder to move during construction work.

T-Beam

T-Beam

These are rectangular beams that are cast monolithically; their slabs are made to look like a T, hence their name. Like other types of beams, they are load-bearing structures that can be made wither out of metal, wood, reinforced concrete in the shape of a T. The top of the T serves as a flange and resists compression forces, while the vertical section of the T, also known as the web of the beam, resists shear stress and offers better separation for the bending forces.

T-beams are very effective in resisting sagging moments that act on the beam; this is because the beams are cast monolithically, so the flange also takes up some of the compressive stresses on the beam. This kind of beam also provides better headroom due to the reduced depth of the beam. When compared to rectangular beams, T-beams are a better option for larger spans because deflection on this kind of beam is greatly reduced. The disadvantages of T-beams include the fact that due to a change in cross-section, there is a significant increase in the shear stress at the beam’s web and the junction of the flange. The implication of this is that during their design, T-beams have to be cast very carefully to ensure that both components are well-bonded.

These kinds of beams also develop cracks easily; they are understandable weak in the resistance of lateral shear forces, mainly because the slab is rigid (monolithic). In regions that are prone to earthquakes, when construction workers use T-beams, they usually reinforce them in the junction with mechanical stiffeners. Additionally, when compared to the I-beam, the T-beam has a major disadvantage. The absence of a bottom flange in a T-beam means that it is incapable of dealing with tensile forces the way an I-beam does. Engineers would often try to make a T-beam more structurally efficient by using an inverted t-beam and then having a bridge deck or a floor slab join the tops of the beams. These slabs would serve as the compression flange.

I-Beams

I-Beams

It’s pretty easy to guess why I-beams have their name. They are shaped just like the capital letter I. You’ll often find these kinds of beams in the interior walls of houses or huge commercial building projects. Many builders, contractors, and engineers like to use I-beams in basement walls or on top of the foundation. At these points, these beams can provide optimal support for the higher levels of the building. You’ll also often find them in garages serving as rails or tracks for those motorized wheeled trolleys used in the opening and closing of garage doors.

One major disadvantage of using an I-beam is that it is more unlikely to bend or warp, thanks to its structurally sound composition. Based on this, people designing I-beams can easily create huge open spaces that usually couldn’t be done with beans. I-beams are also loved for their ability to withstand a load. One major disadvantage of using an I-beam is that it can hardly withstand heat. They’re so susceptible to heat that they bend and fail when heated up, needless to say, that this can cause huge construction problems. A smart way to prevent this bending and failure is to insulate an I-beam to protect it from heat and prevent bending.

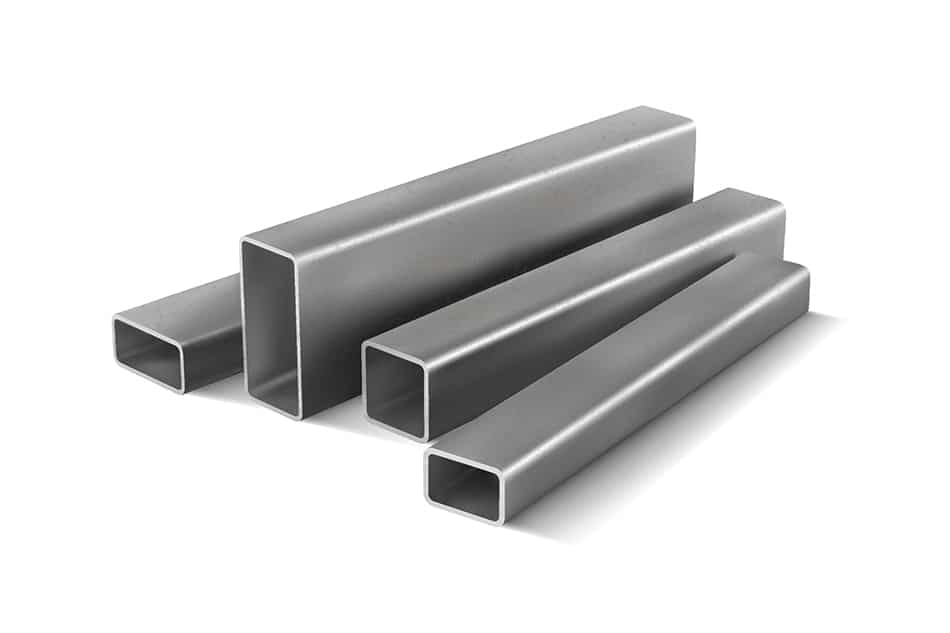

Rectangular Beams

Rectangular Beams

Rectangular beams are known to be generally good at opposing biaxial and torsion bending since their second moments of area is large at both their axis. In addition, they possess four flat sides that can improve connection detailing in certain cases, and many architects consider them more pleasing to the eye than other beams when exposed. One demerit of rectangular beams is that they are not so cost-effective when compared to, say, a universal beam as the latter possesses a more efficient section shape for the 2nd moment of area attained.

Whenever you hear about the rectangular beam, you’ll also most likely hear about the T-beam, which often makes many people wonder about the difference between both beams. T-beams are rectangular beams cast in the shape of the letter T.

Over-Hanging Beams

Overhanging beams are beams where one end of the beam extends beyond the beam’s supports. The overhanging part of the beam may be on one of the supports or both ends of the support. In these kinds of beams, there is a positive bending movement between the supports and a negative bending movement in the overhanging parts of the beam.

Many people often ask about the difference between an overhanging beam and a cantilever beam since both types of beams have a part of them hanging out. The difference is simple. A cantilever beam is only supported on one side. The rest of the beam hangs freely. An overhanging beam, on the other hand, is supported on two sides, but some parts of the beam still hang freely beyond the supports on one or both sides.
